WDR High Speed Dome PTZ CCTV Security Coax Camera Infrared Indoor Color Day/Night, 30x Optical Zoom

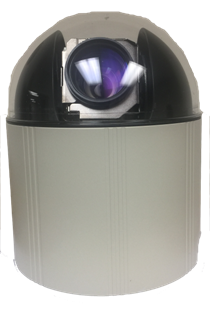

The iEGL30XDC is an infrared high speed dome PTZ camera made with the Sony Ex-view CCD sensor / image processor which is capable of capturing video at 520 lines of resolution  in color and black & white. It also has an 30x optical zoom range via the 4.7 ~ 84.6mm lens and a max IR distance of 196 feet (60 meters).

Features

• Modular cameras for outdoor housing
• Compact Size of 5" (135mm) diameter
• 520 lines high resolution color CCD
• 30x optical zoom & 8x in digital
• Continours panning for 360°, Tilt for 180°
• Fast rotation speed, up to 300° per second
• RS-485 digital control, supporting multi0nude topology
• BNC connector for video output
• Programmable for view postion, speed and dwell
• View position preset, up to 64 points
• Auto-pan and 4 groups of tour
• 3 alarm inputs and 1 alarm output
• Compatible with Pelco D and P protocols
• Internal ID setupl function, maximum to 128
• Compatible with keyboard and DVR for CCTV system
• Compatible with PC and video server for WAN/LAN surveillance
• 12V DC or 24V AC power input

Download Full Resolution PDF Coming Soon
 (Power supply not included see Accessories)
*Specification & Illustrations are subject to change without prior notice
