For Two POS 360 Liquor POS Registers IP Text Interface/Overlay - Inserters Text on NVR/IP Camera Video
1 of 5 Enlarge

For Two POS 360 Liquor POS Registers IP Text Interface/Overlay - Inserters Text on NVR/IP Camera Video

Product ID iTIVO-IP-2-P360
List Price: $1,095.00
Price: $749.00
Ready RJ45 Ethernet patch cable for POS Port
This device lets you view your POS/Register or any HDMI source on your IP camera via NVR/Hybrid DVR as a Picture-in-Picture (PIP) without needing an extra port on your NVR, or you can connect it to another port if your NVR/Hybrid DVR has more ports available. POS/Register must have an HDMI port. New Feature added to iTIVO-IP / 2.

IP Camera POS Text Overlay Interface for POS 360 Liquor POS — Dual Camera/POS Cash Register

Overlay live POS and ATM transaction data directly onto your IP camera feed in real time. The iTIVO-IP/2 sits between your point-of-sale system and your NVR, linking every receipt line to the matching video frame — so you see the cashier, the product, and the price on one screen. Stop theft, prevent fraud, and simplify investigations with a single device.
DETAIL REMOTE DEMO AVAILABLE FOR LARGER VOLUME ORDERS BY SCHEDULE, CALL OUR OFFICE.
4K / 8MP 5MP 2MP / 1080p 1.3MP / 720p H.265 & H.264

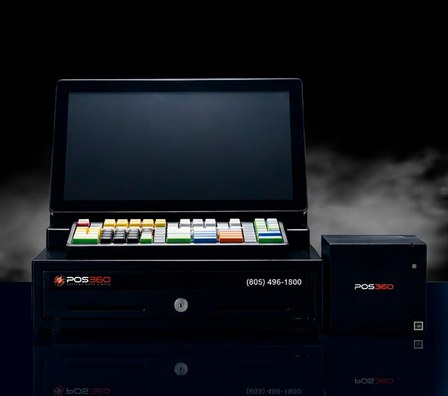

POS 360 Liquor POS register
Ready-made bundle for POS 360 Liquor POS

POS 360 Liquor POS

The iTIVO-IP-2-P360 comes ready for POS 360 Liquor (two registers, two cameras): it includes a POS 360 Liquor over-IP connection for each register (no cable needed), so there is no adaptor to choose — just connect it to your POS 360 Liquor registers and your IP cameras.

POS system NOT included. Please check with POS360 for any additional subscriptions or activation that may be required. Hard-copy step-by-step instructions may be included as a courtesy, if available; however, we are not responsible for configuring your POS — your POS vendor or POS support will need to help you configure it.

📹

Live Text Overlay

Transaction data appears on your camera feed in real time — every item, price, and total linked to video.

🤖

Smart AI ParserAI

Automatically recognizes any POS format — Gilbarco, NCR, Clover, Epson, or plain text. No manual setup needed.

📊

Built-in Analytics

Sales reports, employee tracking, exception alerts, and AI-powered predictive analytics — all from the web dashboard.

🔒

Loss Prevention

Flag voids, no-sales, refunds, and suspicious keywords instantly. Get email alerts the moment exceptions happen.

📡

Wi-Fi Hotspot

Built-in Wi-Fi hotspot creates a direct connection to the device — plug in, connect, and configure in minutes.

🌍

Cloud TunnelNEW

Access your device from anywhere in the world — no static IP, no port forwarding, no complex network setup required.

🌐

Two LAN Port with DHCP option on 2nd LAN

1st LAN for camera/NVR/POS network and/or 2nd LAN for Cameras or POS — fully isolated, no conflicts.

🎥

Up to 8MP

Supports IP cameras up to 8 megapixels — crystal clear video with transaction overlay at any resolution.

Web-Based Management Dashboard
Manage cameras, view live overlay, review transactions, and run reports — all from your browser.
Features
✓
Supports IP cameras up to 4K/8MP, 5MP, 2MP/1080p, and 720p
✓
H.265 & H.264 codec — auto-detected
✓
ONVIF & RTSP protocol support with auto-discovery
✓
POS input via Serial RS-232, USB, TCP, or UDP
✓
Smart AI transaction parser — works with any POS formatAI
✓
Protocol support: Epson, Verifone Ruby, Gilbarco, NCR, Clover, Plain Text & many more
✓
Modern web interface for setup, monitoring, and control
✓
Live camera preview with text overlay in browser
✓
Programmable fonts, text size, color, background & transparency
✓
Text overlay position adjustable anywhere on screen
✓
Displays up to 80 lines / 140 characters per line
✓
Programmable scrolling speed, line spacing & screen clear timers
✓
Email alerts on exception keywords (Void, No Sale, Refund, etc.)
✓
Up to 16 programmable exception / flagged transaction keywords
✓
Built-in transaction & exception logging with timestamps
✓
Sales reports — revenue, tax, average transaction, peak hours
✓
Employee performance tracking & by-time analysis
✓
AI Predictive Analytics — forecast sales, items & busy hoursAI
✓
Snapshot capture & video clip recording from web UI
✓
Secure login with password recovery & account lockout
✓
LAN port(s) — one for camera/NVR, optioinal second LAN for POS network or additional cameras
✓
Built-in Wi-Fi hotspot for easy local setup & configuration
✓
Cloud Tunnel — remote access from anywhere, no static IP or port forwarding needed
✓
Wi-Fi for internet connectivity or additional camera access
How It Works
iTIVO-IP Network Diagram — POS to Camera Overlay
POS / Cash Register → iTIVO-IP → IP Camera feed with live transaction overlay → NVR recording
Specifications
Technical Specifications
Camera Support 2 IP Camera (dual channel)
Resolutions 4K/8MP, 5MP, 2MP/1080p, 1.3MP/720p
Camera Video Codec H.265 (HEVC) & H.264 — auto-selected
Camera Protocol ONVIF & RTSP with auto-discovery
POS Data Input TCP, UDP, Serial RS-232, USB Serial - Text forwarding also available via TCP and UDP protocol
POS Protocols Verifone Ruby Epson, Gilbarco XML/Plain Text, NCR, Clover, Plain Text, Smart AI Auto-Detect, & many more
Overlay Text Up to 25 lines, 60 characters per line
Exception Keywords 13 Fixed and up to 16 programmable keywords with email, FPT, Google Drive, (WhatsAPP Beta) alerts
Transaction Logging Transactions with timestamps (configurable retention)
Network — LAN 1 Gigabit Ethernet (RJ-45) for camera / NVR network / POS Network
Network — LAN 2 with DHCP Server Support Gigabit Ethernet (RJ-45) for Cameras or POS network - Option to enable a DHCP Server to provide IP address to cameras connected to LAN2
Network — Wi-Fi Built-in Wi-Fi for internet access or camera connectivity
Wi-Fi Hotspot Built-in hotspot — connect directly for quick local setup
Cloud Tunnel Remote access from anywhere — no static IP, no port forwarding required
Management Web-based dashboard (accessible from any browser on the network or remotely via tunnel)
Power Supply 12VDC (included)
Local & Remote Application Desktop browser, Mobile Browser, Windows desktop application
Compatibility

POS Systems & Cash Registers

  • Gilbarco Passport
  • Verifone Ruby 1 & Ruby 2
  • NCR / NCR Silver
  • Clover POS
  • Epson POS Printers
  • Sharp Cash Registers
  • Radiant Systems
  • Dresser Wayne Nucleus
  • Square POS
  • Toast POS
  • Most serial & network POS systems

Serial & IP Device Interfaces

  • Cash Registers & EPOS
  • POS Systems & Terminals
  • ATM Machines
  • Receipt Printers
  • Barcode Readers / Scanners
  • Scales & Weighing Systems
  • Radar / Speed Guns
  • GPS Systems
  • Access Control Panels
  • Kiosks & Self-Checkout
  • Most RS-232 serial devices
One Full Year of Cloud Tunnel Access — On Us

Every iTIVO-IP/2 includes a full year of Cloud Tunnel access, free. Securely reach your device from anywhere to change settings, pull sales & exception reports, and search your transaction logs — with no static IP and no port forwarding to set up.

Prefer to keep everything on-site? Your iTIVO-IP / 2 always works on your own network — connect directly by its local IP address, or set up a static IP with port forwarding if you like. The tunnel simply makes remote access effortless, with nothing to configure.

After the first year, keep remote tunnel access for just $12/month — far less than the cost and hassle of a dedicated static IP and port-forwarding setup. Renewal is completely optional; your iTIVO-IP / 2 keeps recording and overlaying transactions either way.

Datasheet / PDF download coming soon
See iTIVO-IP / 2 in Action — Live POS Text Overlay Demos
POS video text overlay & AI loss prevention on existing IP cameras / NVR — Gilbarco Passport, Verifone Ruby & C18
Gilbarco Passport
Verifone Ruby 2 / Ruby Ci / Topaz
Verifone C18
Square POS
How It Works

One small box between your POS and your cameras

1
POS / REGISTER
Gilbarco, Verifone, NCR, Clover, Square & more send live transaction text
→
2
iTIVO-IP-2
Parses the data, overlays it on the video, and logs every transaction
→
3
IP CAMERA
Any ONVIF / RTSP camera shows the receipt line on the live picture
→
4
NVR
Records video with the text burned in — searchable forever
Own It — Don't Rent It

iTIVO-IP / 2 vs. typical cloud/subscription systems


iTIVO-IP / 2
Typical Cloud / Subscription
Pricing
One-time purchase
Monthly/annual fees
Monthly fees
None, ever
Ongoing, often per camera
Where your video lives
On-premise — stays on site
In the vendor's cloud
Uses your existing cameras
Yes — any ONVIF / RTSP
Often requires their hardware
AI forecasting & reports
Included
Usually a higher tier / add-on
Remote access
Free private tunnel
Tied to subscription
Ownership
You own the box & data
Access ends if you stop paying
Price: $749.00
« Previous | Next »
Product Reviews
No Reviews For This Product.

Same kit for other POS brands

Also for POS 360 Liquor: IP cameras / NVR – one register.

7-Eleven / NEC POS text inserter kit7-Eleven / NEC$749Clover POS text inserter kitClover$749Epicor POS text inserter kitEpicor$759Gilbarco Passport PX60 (MAT RDR / secondary port) POS text inserter kitGilbarco Passport PX60 (MAT RDR / secondary port)$765JKRetail by JKSoft POS text inserter kitJKRetail by JKSoft$759National Retail Solutions (NRS) POS text inserter kitNational Retail Solutions (NRS)$749NCR Radiant Aloha POS text inserter kitNCR Radiant Aloha$759PC America POS text inserter kitPC America$749RetailZ POS text inserter kitRetailZ$749Samsung SAM4s (9-pin serial) POS text inserter kitSamsung SAM4s (9-pin serial)$759Samsung SAM4s (RJ45 serial) POS text inserter kitSamsung SAM4s (RJ45 serial)$759Square POS text inserter kitSquare$749Verifone C18 POS text inserter kitVerifone C18$749Verifone Ruby 2 & CI POS text inserter kitVerifone Ruby 2 & CI$749Verifone Ruby Topaz POS text inserter kitVerifone Ruby Topaz$749

Don’t see your POS? Order the iTIVO-IP-2 and choose your adaptor from the drop-down.
