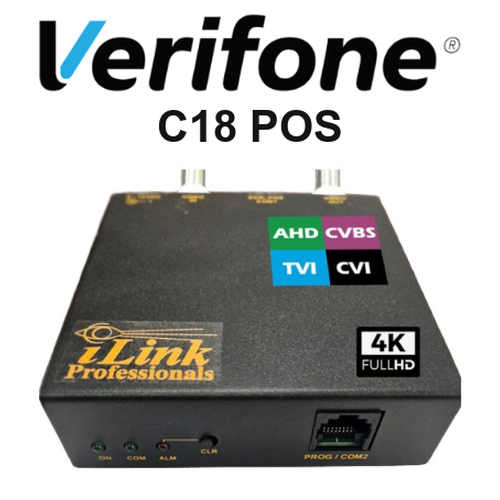

Verifone C18 POS Cash Register Text Inserter / Overlay on 4K DVR / Camera with Com Cable

Verifone C18 POS
POS system NOT included

2 trigger inputs, 2 alarm outputs. 16 programmable flagged/suspicious transactions. Programmable text sizes, grey-scale, background, and transparency.

POS Text Overlay/Inserter on up to 4K CCTV Video HD DVR w/ Verifone C18 Serial COM Cable, 3 ft (ICABLER)

All orders placed in and after 2023 will have a free extended 3 year warranty.

The iTIVO-HD text interface device allows data transactions from your POS Cash Register with Verifone C18 Software and displays it on top of your normal video. Once a transaction is started, data is generated from the POS Cash Register and it is sent to the text interface device to ovelay this data on top of the normal camera picture.This is a perfect product to have with ATM theft and fraud becoming such an ascendant concern. The iTIVO-HD links the data with the picture so that on the monitor screen you will see not only the cashier and the product being sold, but also the price charged by the clerk for that product. This CCTV security camera POS Text Inserter/Overlay device works with CCTV coax AHD, TVI, CVI & CVBS analog camera, standard analog DVR or HD DVR/NVR/XVR, and VCR.

Now compatible and tested with up to 4K/8MP, 5MP, 4MP, 1080p/2MP, 720p & 960H analog TVI, AHD, CVI & CVBS CCTV Coax Cameras System

Key Features:

• Displays up to 10 lines
• Displays up to 40 characters per line
• Programmable text sizes, grey-scale, background, and transparency
• Text can be positioned anywhere on the screen
• Programmable scrolling speed, pause and screen clear timers
• Blinking text and LED on flagged transactions (exceptions)
• 16 programmable flagged/suspicious transactions (For Example, Void, No Sale, Cancelled, etc.)
• Up to 4000 transactions and exceptions logging with time stamp (minimum 500, optional)
• 2 trigger inputs
• 2 alarm outputs
• Cash drawer monitoring
• Video loss and com activity LEDs for ease of installation and fault finding
• Host/PC programming
• HD model supports HD up to 4K, 5MP, 4MP, 2MP/1080p, 720p, 960H, and all CVBS, TVI, CVI AHD video standards.

Verifone C18 POS Text Overlay Demo (shown with the iTIVO-IP)

For Ethernet IP Camera/NVR 4K/8MP, 5MP, 4MP, 1080/2MP POS Text Inserter / Overlay unit CLICK HERE

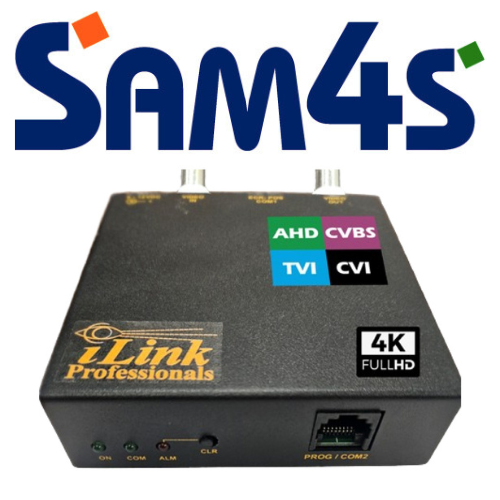

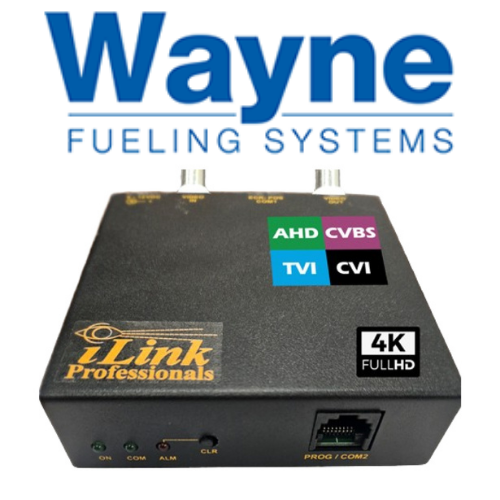

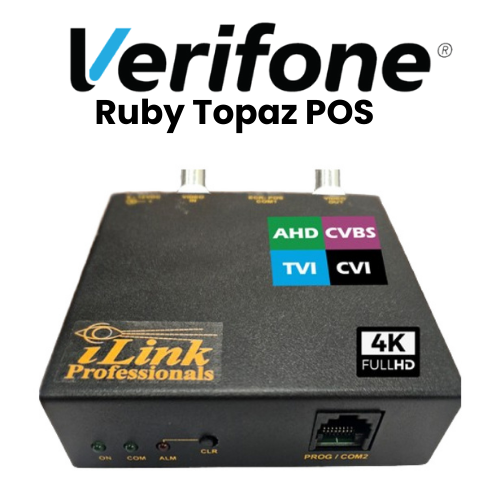

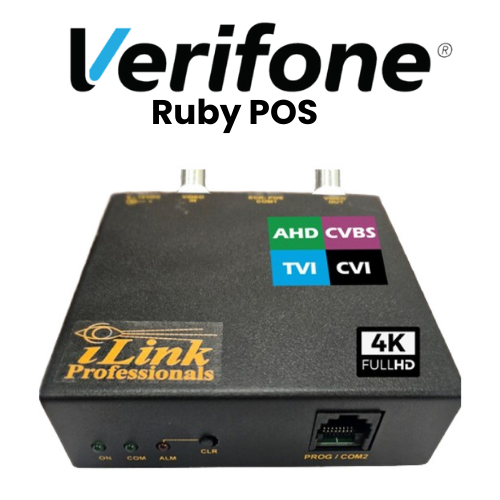

iTIVO-HD4K is compatible with most Point-Of-Sale (POS) Systems, Cash Registers, and ATMs (For example Verifone Ruby 1, Ruby 2, Dresser Wayne Nucleus, Gilbarco Passport, NCR, Epson, Sharp, etc.).

iTIVO-HD4K Text Inserter Connected With Various POS Videos

iTIVO-HD4K Serial Interfaces can make the connection between:

• Cash Registers POS/EPOS
• Computers
• Printers
• POS Systems
• ATMs
• Barcode Readers
• Radar Guns
• Scales
• GPS Systems
• Access Control Panels
• Most RS-232 devices .....

Package includes:

Demo Video

 *  Regular Stocking Item
Download High-Resolution PDF

Cash Register / POS Compatibility List  - Windows Programming Software -  Config files 720p 1080p 4MP 5MP 4K AHD CVI TVI.zip - Wiring & Cables - User Manual - Quick Start Guide - Software Config Manual
