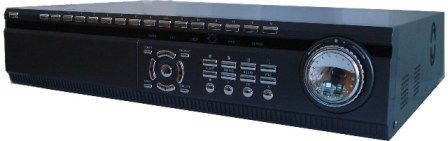

iLink Professionals, Inc. - 16 Ports H.264 Real Time Display Network Stand Alone DVR with DVD-RW, Standalone DVRs, iSDVR16H-VNDVD

This Item is replaced with iSDVR16M-VNDVD
Flyer (PDF)

Items

iSDVR16H-VNDVD

Video signal

PAL (625 line, 50 fields/s) NTSC (525 line,60 fields/s)

Video input

Composite video output: 1.0V p-p/75Ω, BNC connector X 16

Video output

Composite video output: 1.0V p-p/75Ω, BNC connector X 1 & VGA (VGA or BNC port can be used at a time)

Audio input

BNC connector X 16

Audio output

RCA X1 audio output, RCA X1 talkback output

Alarm input

Relay output, On (NO) or Off (NC), 8 ch input(intelligent switch)

Alarm output

Relay output, On (NO) or Off (NC), 4 ch output

Alarm mode

Alarm input in inductor; VMD alarm; video loss alarm; full disk alarm

Network mode

10/100M self-adapting Ethernet port; enabled in LAN、ADSL、DDN、WAN modes

Control mode

Enabled in PTZ, lens control, RS485 connector X1

Backup mode

USB backup, Network backup, DVD-RW recorder (Included）

Resolution

Display resolution: 704×576
Compress resolution: CIF 352×288 , Half-D1 704×288

Compress standard

H.264

Hard disk

4 SATA interface, available for 1G large-capacity hard disk

Bit stream setup

Seven levels: 1 level 100MB/h/ch, 2 level 150MB/h/ch, 3 level 200MB/h/ch, 4 level 250MB/h/ch, 5 level 300MB/h/ch, 6 level 350MB/h/ch, 7 level 400MB/h/ch, self-set: 1~100 MB/h/ch

Secrecy function

128 bit data secrecy + secondary password management

Power source

110-220V(±10%)/50HZ，180W

Power

50W(without hard disk)

Dimension

435(L)×415 (W) ×103(H) mm
